- Head: Trinocular, 45 degrees inclined 360 degrees rotatable; Nosepieces: Quadruple, objective center adjustable; Eyepieces: a pair of wide field WF10X/18 (one with crosshair reticle), one pair WF25X
- Head: Trinocular, 45 degrees inclined 360 degrees rotatable; Nosepieces: Quadruple, objective center adjustable; Eyepieces: a pair of wide field WF10X/18 (one with crosshair reticle), one pair WF25X
- Head: Trinocular, 45 degrees inclined 360 degrees rotatable; Nosepieces: Quadruple, objective center adjustable; Eyepieces: a pair of wide field WF10X/18 (one with crosshair reticle), one pair WF25X
- Objectives: Strain free achromatic, DIN 4x, 10x, 40x (spring), 60x (spring); Total magnification: 40x-100x-250x-400x-600x-1000x-1500x; Condenser: NA1.25 Abbe Condenser with iris diaphragm and filter holder; Stage: Rotatable, with 360degrees; angle graduations and a vernier scale, accurate to 0.1degrees
- Diameter 160 mm; Analyzer: Removable, 0 degrees - 90 degrees graduation, with built in Bertrand lens (easy to slide in and out of the light path); Polarizer: mounted on the top of the illumination housing, easy to swing in and out of the light path; Compensators: quarter-wave plate (1/4 lambda plate),tint plate (1 lambda plate), and one quartz wedge
- Focus adjustment: Coaxial coarse and fine adjusting knobs on both sides; Camera port: Standard 23.2 mm; Illumination: transmitted, Halogen Lamp, 6V/20W, brightness adjustable; Power supply: AC 100V-240V/60Hz (US and Canada)
- 5-year warranty against manufacturing defects

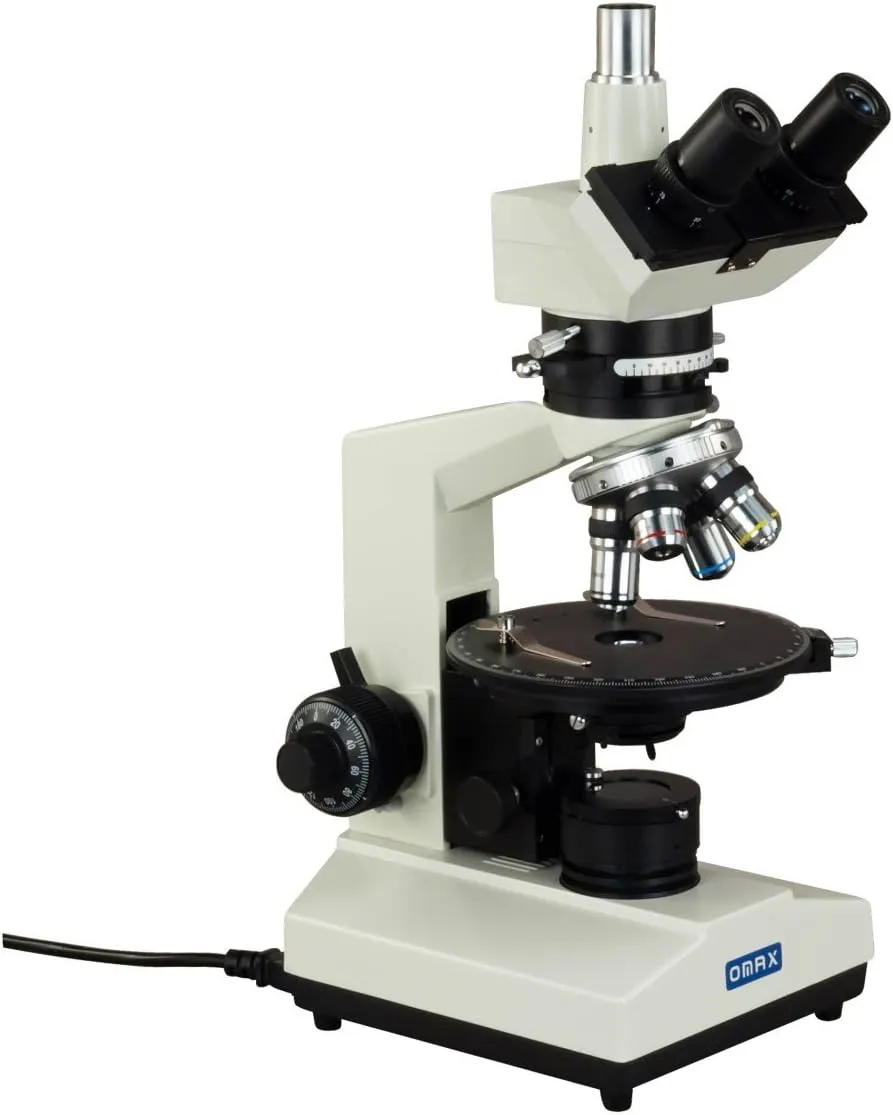

This polarizing microscope kit is useful for polarized light applications such as transparent mineral thin-section analysis and asbestos analysis. It comes with a 45 degree inclined 360 degree rotatable trinocular head, coarse & fine focusing and 20W transmitted halogen illumination. The polarizing filter can be swung out of the light path for an unpolarized light source. The microscope has a quadruple revolving nosepiece with center adjustable objectives and a rotatable circular stage. It has a built-in focusable Bertrand lens on rotatable disc with centering controls. The kit includes three compensator plates for installation into the Bertrand lens. The built-in analyzer can be removed from optical path. One of the 10x eyepieces comes equipped with a crossline reticle, which is useful for measurements and centering.
